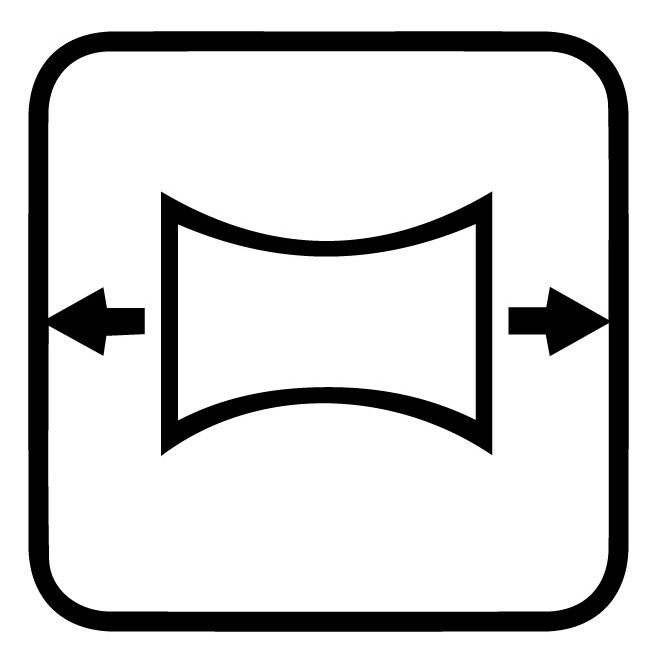

Is a physical property used to demonstrate how a material will react under a pulling force.



For example, tug of war consists of two teams pulling at opposite ends of a rope. Depending on the material, or in this case, how the rope reacts is defined using tensile strength.

Tensile strength is a key physical property often specified with elastomeric materials,  including polyurethanes.This versatile material provides engineers the flexibility to customize a wide range of tensile strength properties based on design specifications.

The ultimate tensile strength of a material is an intensive property; therefore its value does not depend on the size of the test specimen. However, depending on the material, it may be dependent on other factors, such as the preparation of the specimen, the presence or otherwise of surface defects, and the temperature of the test environment and material.

Some materials break very sharply, without plastic deformation, in what is called a brittle failure. Others, which are more ductile, including most metals, experience some plastic deformation and possibly necking before fracture.

Tensile strength is defined as a stress, which is measured as force per unit area. For some non-homogeneous materials (or for assembled components) it can be reported just as a force or as a force per unit width. In the International System of Units (SI), the unit is the pascal (Pa) (or a multiple thereof, often megapascals (MPa), using the SI prefix mega); or, equivalently to pascals, newtons per square metre (N/m2). A United States customary unit is pounds per square inch (lb/in2 or psi). Kilopounds per square inch (ksi, or sometimes kpsi) is equal to 1000 psi, and is commonly used in the United States, when measuring tensile strengths.

Tensile Strenght

# System Hardness Tensile Strenght
1 GI – E2 Series 80 ShoreA 16.5 N/mm2
2 GI – E4 Series 80 ShoreA 47 N/mm2
3 GI – V Series 65 ShoreA 6 N/mm2
